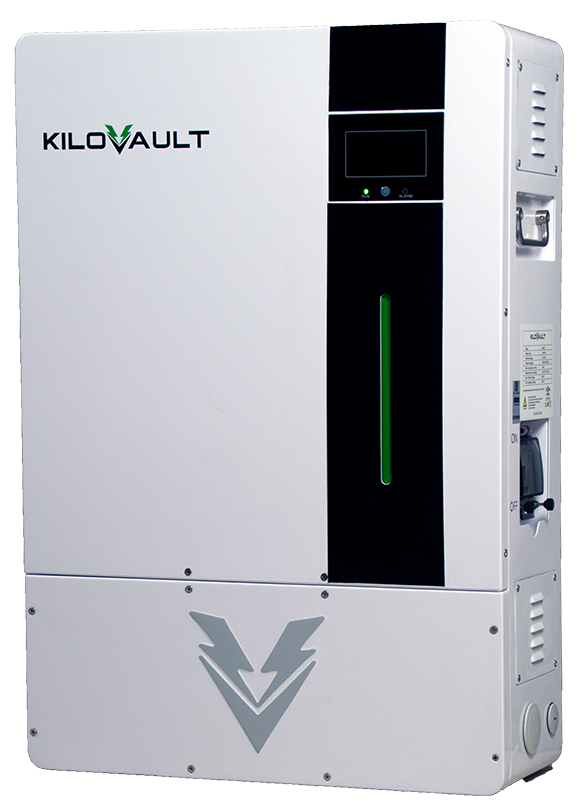

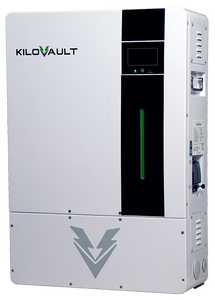

KiloVault® HAB™ Series Wall-Mount Energy Storage systems provide a 7.5 Kilowatt-hour battery in a single unit. Up to fourteen units can be used together for additional capacity. The HAB Series has been designed for trouble-free mounting and is easy to connect with other system components.

• Wall mounted
• High safety LFP battery
• Integrated Inverter Communications
• Built-in WiFi for Performance Management
• Long cycle life (up to 6000 cycles)
• High charge / discharge current
• Intelligent LED & LCD display
• Support for multi-battery modules in parallel

• Battery Type:  LFP
• Maximum Continuous Charge Current: 50A*
• Maximum Continuous Discharge Current: 60A*
• Maximum Continuous Discharge Power: 7.5kW
• Minimum Discharge Voltage: 48.0V
• Weight: 208 lb (94 kg)
• Height: 25.09 in (637.4 mm)
• Width: 19.78 in (502.4 mm)
• Depth: 8.79 in (223.4 mm)
• Hanging Bracket: 0.51 in (13 mm)
• Ingress Rating: IP51
